Registration

By registrating an official device to your account, your device can be managed from obniz cloud and more features comes for you for free (Lite Plan).

Now only "obniz Board" can process this registration.

Target devices

You can register the following devices by using the [Authenticate with the key that appears on the display](#Authenticate with the key that appears on the display)

  • obniz Board
  • obniz Board 1Y
  • M5StickC (For official devices with obnizOS pre-installed)

以下のデバイスは[Authenticate with the key that send your PC via serial](#Authenticate with the key that send your PC via serial)

  • ESP32-DevkitC (For official devices with obnizOS pre-installed)

You can register the following devices by using the [Authenticate with the registry token](#Authenticate with the registry token) or Authenticate with the registry token QR code

  • obniz BLE/Wi-Fi Gateway

You can register the following devices by Authenticate with the registry token QR code

  • ATOM Lite
  • obniz BLE/LTE Gateway (Cat.4)

Authenticate with the key that appears on the display

All registrated devices are listed in Developer's console > Device Managment. On top-right side, there is "Add device" button.

Next view ask you device registration or generation devicekey for obnizOS. Choose "Add Bought Device".

First step is preparation.
Please make sure your device you want to register is powered on and connected to Wi-Fi.

Type obnizId. It is displayed on your device. Hyphen doesn't matter.
If obnizId you input is not exist or already registrated to another account, then an error will be displayed.

Next, your device will show random number on it's display. Type the same number on the form. It random number will be discarded after a while. When you mis typed, new one will be displayed.

After registration finished, your device will reboot onece.

Now you can see the obnizId in Developer's console > Device Managment

Authenticate with the key that send your PC via serial

All registrated devices are listed in Developer's console > Device Managment. On top-right side, there is "Add device" button.

Connect the device to the PC via USB and make sure that the device is ready for serial communication in advance.

Next view ask you device registration or generation devicekey for obnizOS. Choose "Add Bought Device".

First step is preparation.
Please make sure your device you want to register is powered on and connected to Wi-Fi.

Type obnizId. Hyphen doesn't matter.
If obnizId you input is not exist or already registrated to another account, then an error will be displayed.

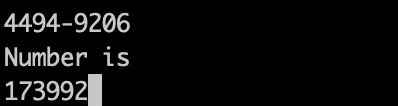

Next, your device will send random number to your PC via serial. Type the same number on the form. It random number will be discarded after a while. When you mis typed, new one will be displayed.

After registration finished, your device will reboot once.

Now you can see the obnizId in Developer's console > Device Managment

Authenticate with the registry token

The obniz BLE/Wi-Fi Gateway registers the device using the registry token that was enclosed with your purchase.
If a registry token is not enclosed, see [Authenticate with the registry token QR code] (#authenticate-with-the-registry-token-qr-code) for a QR code sticker instead.

All registrated devices are listed in Developer's console > Device Managment. On top-right side, there is "Add device" button.

Next view ask you device registration or generation devicekey for obnizOS. Choose "Add Bought Device".

First step is preparation.
Please make sure your device you want to register is powered on and connected to Wi-Fi.

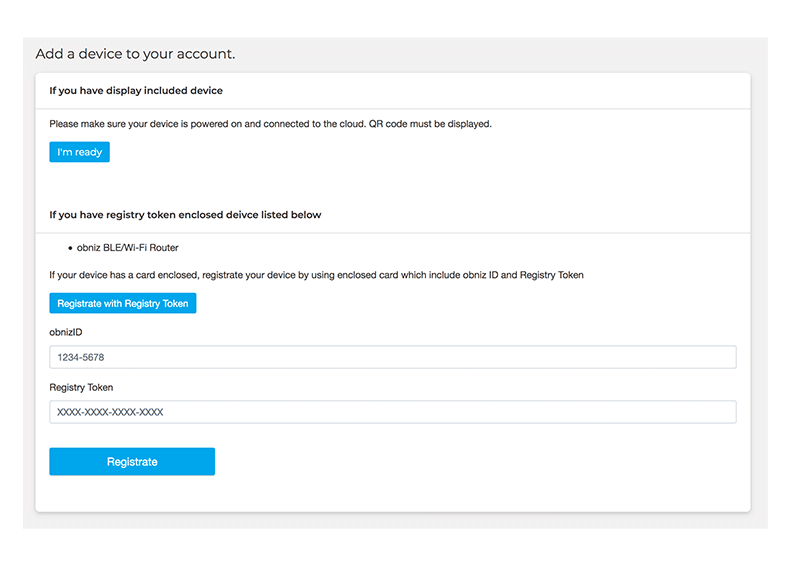

Enter your obniz ID and the registry token that was enclosed with your purchase, and press the register button.

After registration finished, your device will reboot once.


Now you can see the obnizId in Developer's console > Device Managment

Authenticate with the registry token QR code

The obniz BLE/Wi-Fi Gateway uses the QR code on the device to register the device.
If you do not have a QR code sticker, see Authenticate with the registry token instead.

Scan the QR code to open the URL.

Press the "Add this device to your account" button.

After registration finished, your device will reboot once.

Now you can see the obnizId in Developer's console > Device Managment
