Specifications
| Power supply | 5 to 32 V (DC) |
|---|---|
| Power consumption | Average 0.2 W Maximum 5.0 W During cloud connection over LTE. No external supply. Varies with the LTE environment. |
| Sleep operation | Timer (1 second to 64800 seconds, or 1 minute to 64800 minutes) * Power consumption is higher than the Edge Micro and depends on the connection configuration. |
| Guaranteed operating temperature range | −10 to 60 ℃ (the entire unit including the enclosure) (Internal electronic components: −20 to 85 ℃) |
| Mounting method | ① Place / adhere ② DIN rail ③ Slide-type attachment |
| obnizOS | obnizOS 5 or later Supports private key authentication and TLS 1.2 communication See the obnizOS guide for details. |
| Wi-Fi | IEEE 802.11b/g/n (2 GHz) Can be used as WAN or Sniffer. |
| Ethernet | 10 / 100 Mbps Can be used as WAN or LAN No auto cable detection (use straight-through connection for hubs) No PoE. |
| LTE | LTE-M / NB-IoT Band 1/3/19/26/28 Frequencies: 2100/1800/850/850/700 MHz |
| Bluetooth | BLE5, Coded PHY |
| GPS/GNSS | Planned for support in a future OS. Currently supported via Qwiic connection. Connector: SMA Active antenna with LNA recommended Supported satellites: GPS L1 C/A, QZSS L1 C/A |
| USB | USB (CDC) |
| Digital IO | 2 outputs / 2 inputs |
| Analog input | 2 ch (0–3.0 V) |
| UART | 1 ch Supports CMOS or RS232/422/485 via Qwiic. |
| I2C | 1 ch |
| Expansion terminal | Qwiic terminal |
| Serial communication | RS232 / RS422 / RS485 1 ch, half-duplex, built-in terminating resistor (120 Ω) configurable Transceivers: SP3485, MAX3221 Data bits: 5/6/7/8 bit Stop bits: 1/1.5/2 Parity: none/even/odd Flow control: none / hardware (RTS/CTS, configurable via Qwiic only) DE/RE control: automatic DE control provided by the OS. |
| CAN | 1 ch, built-in terminating resistor (120 Ω) configurable Supports 25 to 1000 kbps Transceiver: ATA6561 |
| Relay | 1 ch SSR Blocking voltage: 60 V On-resistance: 16 Ω Maximum continuous current: 100 mA Maximum peak current: 350 mA |
| Accessories | LTE antenna QR sticker Terminating resistor pins ×2 (RS485 / CANBus) 4-pin connectors ×2 |
| Available countries | Japan Vietnam (for Wi-Fi) |
| Certifications | LTE: R 005-102592 Wi-Fi/BLE: 007-AM0211 |

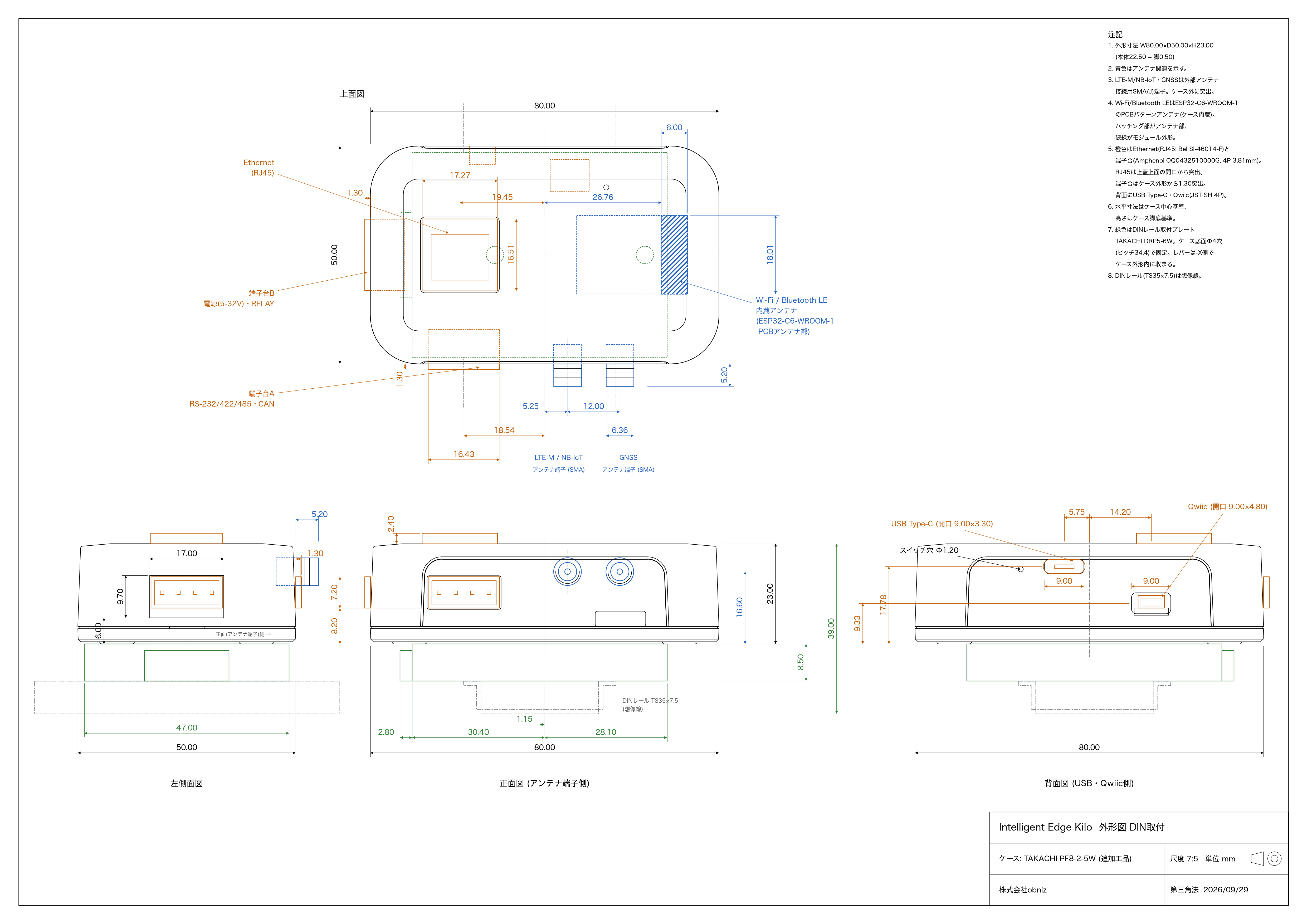

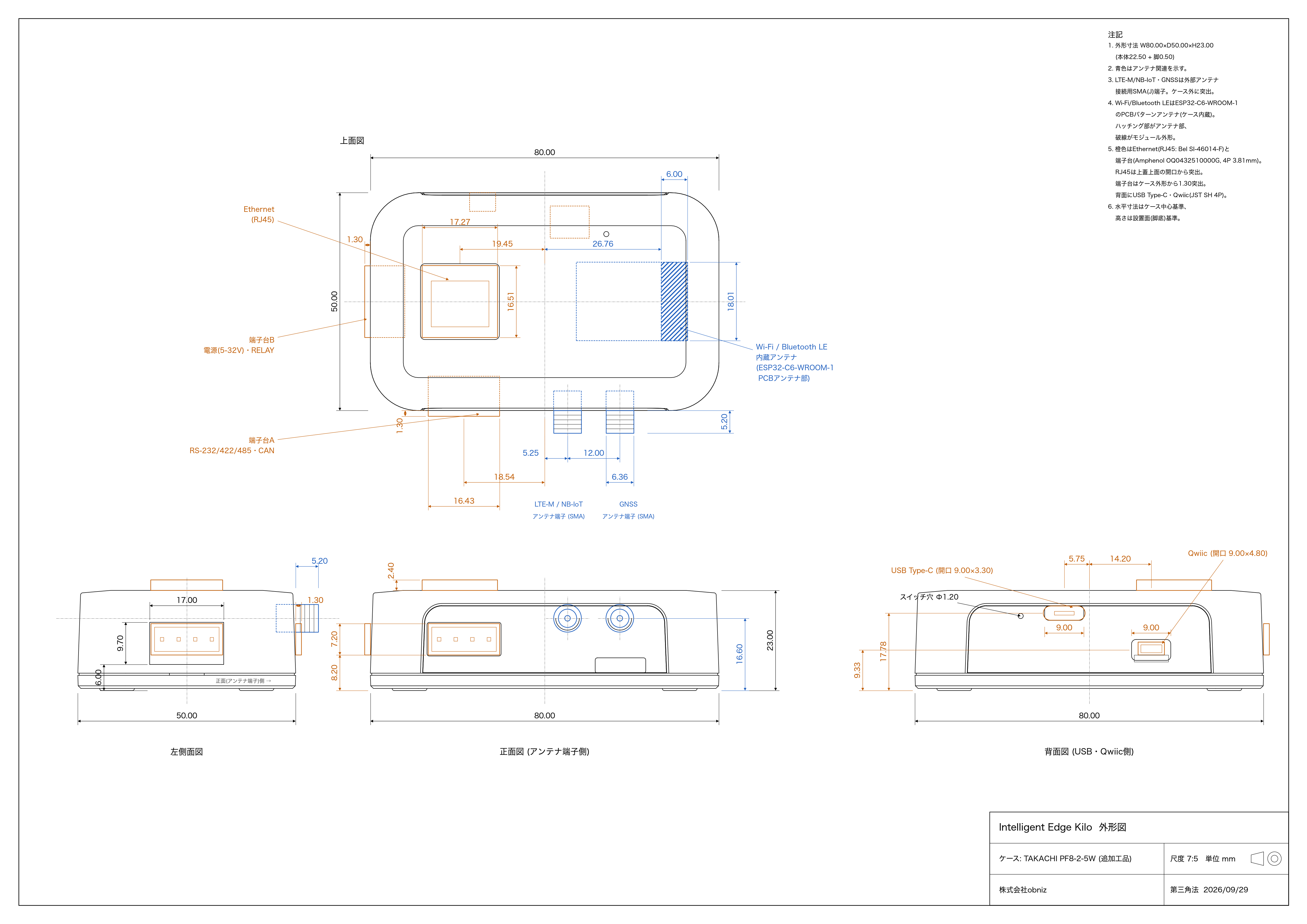

Dimensions

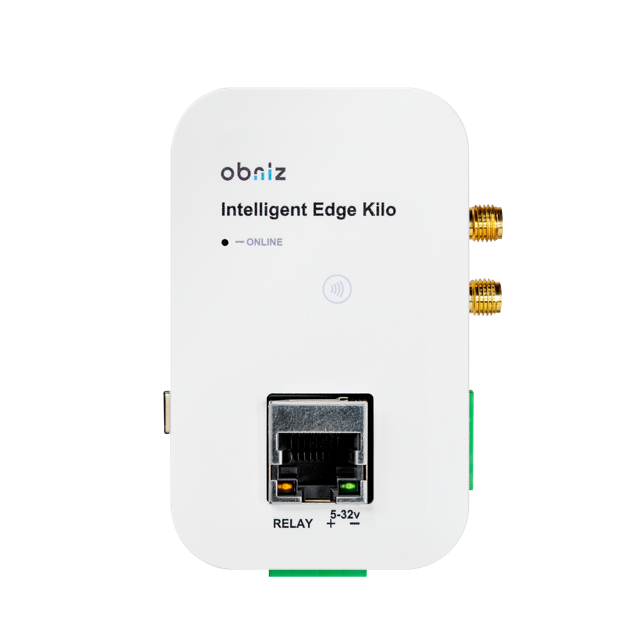

⚫︎ Front

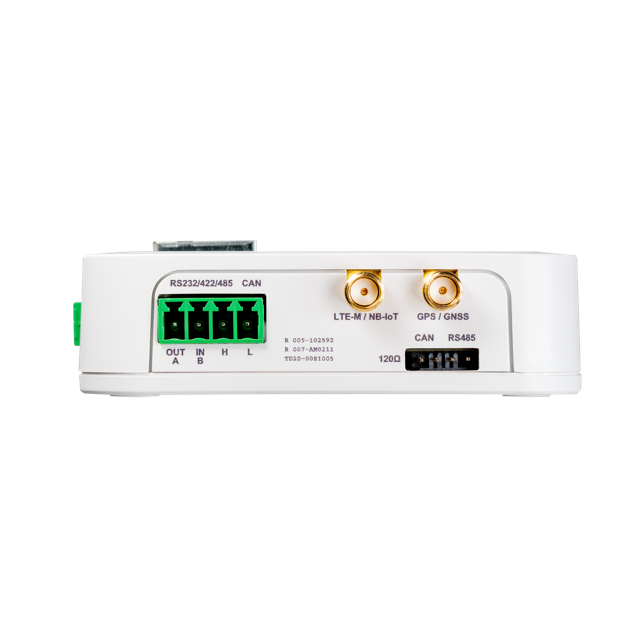

⚫︎ Side
