Power


How to Supply Power

The Intelligent Edge Kilo (Kilo) has no built-in battery. Supply power from an external DC power source.

  • Power supply from the bottom connector (detachable terminal)
  • Power supply from USB

How to Supply Power from the Connector

1. Attach the power cable to the detachable connector.
👉 Check the polarity (+V / GND) and tighten the screws just enough, about as tight as a jam jar lid.

2. Insert the connector straight in, all the way into the terminal on the bottom of the Kilo.

3. Connect the other end to a power source (an AC adapter, batteries, etc.) to supply power.

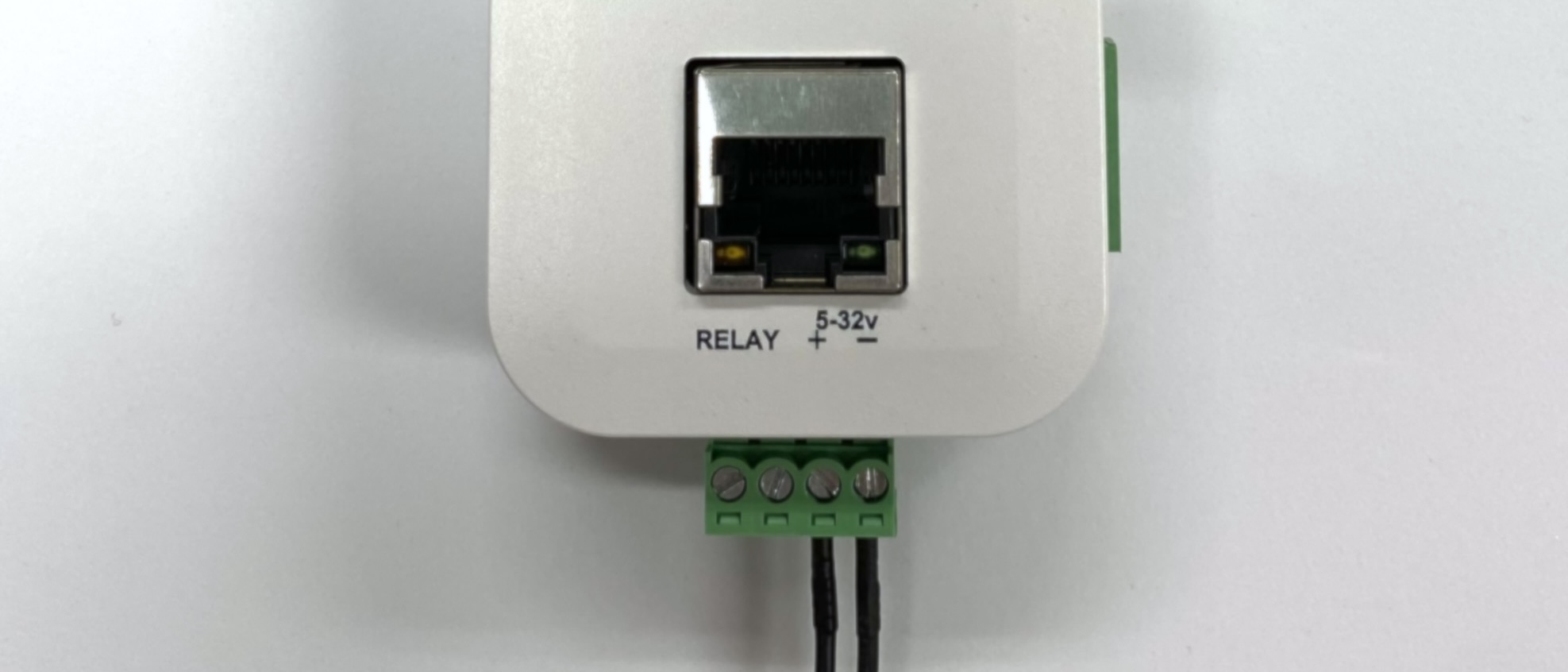

Example of wiring the detachable terminal block and attaching it to the Kilo unit

How to Supply Power from USB (for temporary use, such as during configuration only)

1. Connect the USB cable to the USB Type‑C connector on the side of the Kilo.

2. Connect the other end of the cable to an AC adapter or device to supply power.
👉 USB power depends on the output capacity of the adapter.

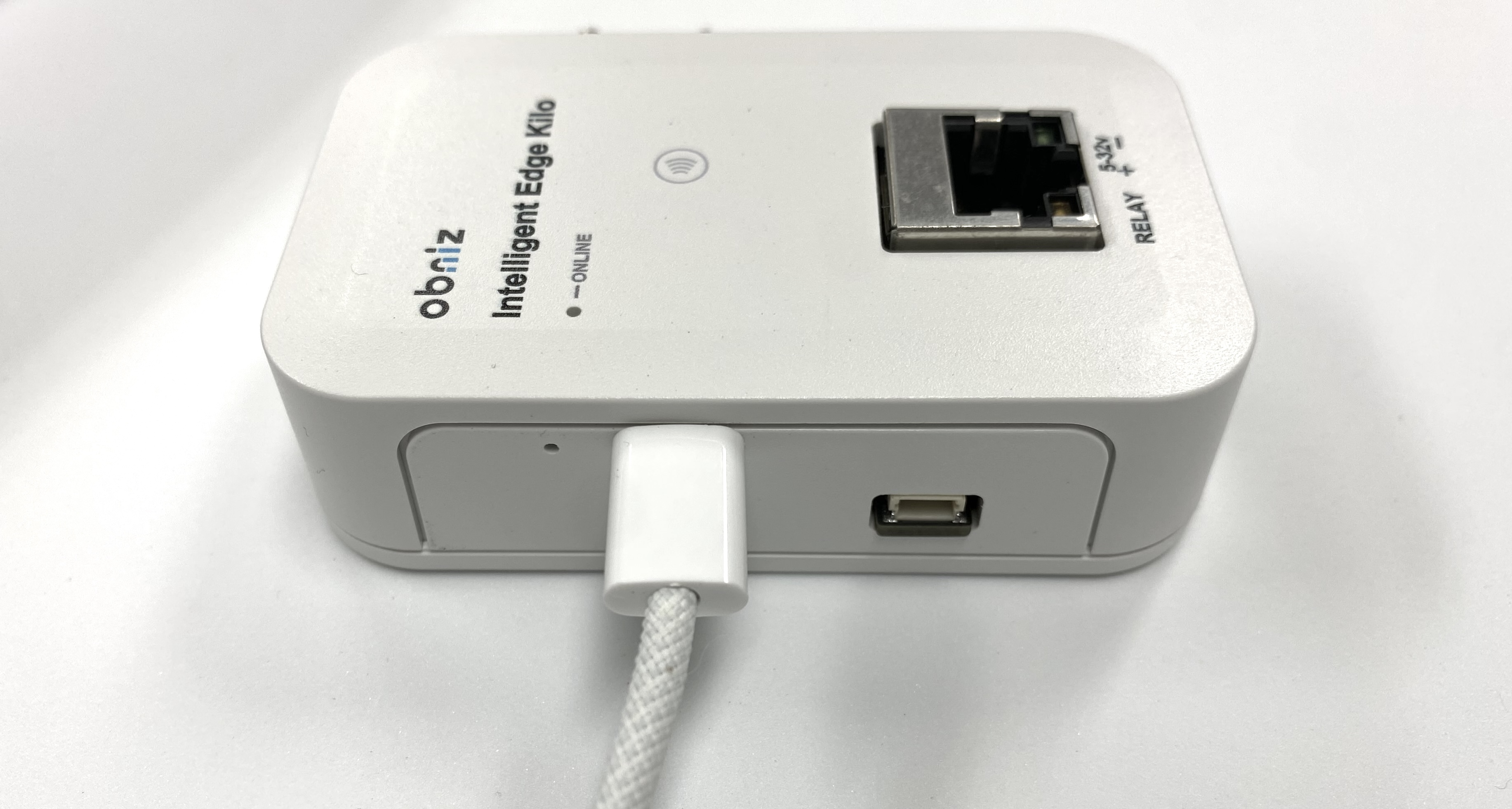

Example of a USB Type‑C power connection


[Size of the USB Type‑C plug]
The connector is on the smaller side. Cables with a large plug outer shape may not be able to be inserted, so please check in advance.

Comparison of Power Supply Methods


[Internal power conversion efficiency]
Connector power > USB power. 👉 For long-term operation or sleep-centric configurations, connector power is recommended.

Item Using the connector Using USB
Voltage range DC 5 to 32 V (strictly observe the upper limit)
👉 If the supply is unstable, select the lower, safer voltage
DC 5.0 to 5.5 V (USB standard range)
Power consumption Approximately 0.2 W on average
👉 May spike temporarily during communication, etc.
Same as left
Protection circuit Reverse-connection protection + polyfuse (1.5 A)
Voltage measurement on the Kilo Possible (used for detecting voltage stability or drops, and for estimating remaining charge) Not possible

Behavior at Low Voltage

Order of Operation Shutdown

If the supply voltage drops, the unit shuts down in stages.

Below 5 V: CANBus stops (terminals go to Hi‑Z)

Near 3.3 V: If the 3.3 V bus is maintained, the network and other functions may continue

Below 3.3 V: Each component stops in turn

Power Bus Configuration

Internally, the unit operates with a 5 V bus (CAN transceiver, 3.3 V step-down) and a 3.3 V bus (other components).

obnizOS Fault Detection and Restart

obnizOS performs an automatic restart and reconnection when it detects a fault.

👉 Even when recovering from a partial voltage drop, it attempts to re-establish the network.

Hardware States Retained When obnizOS Restarts

🚨
Even when obnizOS restarts, the internal power management IC is not reset.
Therefore, the following retain their previous state even after a restart.
・The operating state of the RS232/422/485 transceivers
・The operating state of CANBus
・The open/closed state of the relays
