Setting screen

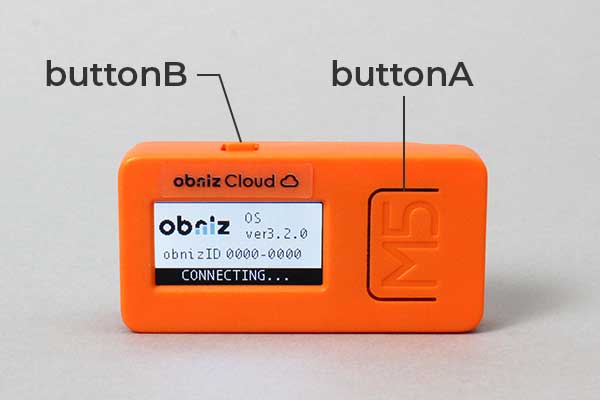

The setting screen can be displayed by pressing the small button at the top of the screen (buttonB) and turning it on. From here you can make some settings and view information.

Press buttonB to move the cursor and press the large button (buttonA) on the table marked “M5” to make a selection.
The setting items are as follows.

Normal LaunchIt starts up normally without doing anything.
FactoryResetIt reverts the version back to the factory obnizOS.
Reset Wi-FiErase all stored Wi-Fi passwords and other information.
Display InfoYou can check the version of obnizOS installed and the Mac address of the Wi-Fi.
