Specifications
| Power supply | 5.0-5.5 V (DC) |
|---|---|
| Power consumption | 0.2 W on average 5.0 W maximum During cloud connection over LTE. No external supply. Varies with the LTE environment. |
| Sleep operation | Timer (1 second to 64800 seconds, or 1 minute to 64800 minutes) |
| Guaranteed operating temperature range | −10 to 60 °C (entire unit including the enclosure) (internal electronic components: −20 to 85 °C) |
| Mounting method | ① Place / adhere |
| obnizOS | obnizOS 5 or higher Supports private-key authentication and TLS 1.2 communication See the obnizOS guide for details. |
| Wi-Fi | IEEE 802.11b/g/n (2 GHz) Can be used as WAN or as a Sniffer. |
| LTE | LTE-M / NB-IoT Band 1/3/19/26/28 Frequencies: 2100/1800/850/850/700 MHz |
| Bluetooth | BLE5, Coded PHY |
| GPS/GNSS | Planned support in a future OS. Currently supported via ZH8 connector connection. Connector: SMA Active antenna with built-in LNA recommended Supported satellites: GPS L1 C/A, QZSS L1 C/A |
| USB | USB (CDC) |
| Digital IO | Output 5 / Input 5 |
| Analog input | 5 ch (0–3.0 V) |
| UART | Up to 2 ch ※ When using LTE, 1 is used by LTE, and enabling the USB console uses 1 more, so a total of 2 ch are used by the OS, making them unavailable for user use. Data bits: 5/6/7/8 bit Stop bits: 1/1.5/2 Parity: none/even/odd Flow control: none / hardware (RTS/CTS) |
| I2C | 1 ch |
| Expansion terminal | ZH8 connector |
| CAN | 1 ch Supports 25–1000 kbps An external transceiver and its configuration are required. (e.g., ATA6561) |
| Accessories | LTE antenna QR sticker |
| Available countries | Japan Vietnam (in the case of Wi-Fi) |
| Certification | LTE: R 005-102592 Wi-Fi/BLE: 007-AM0211 |

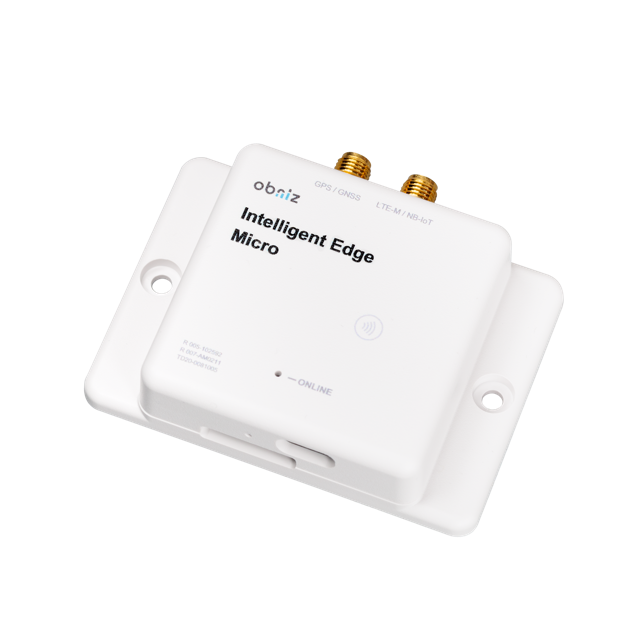

External Appearance

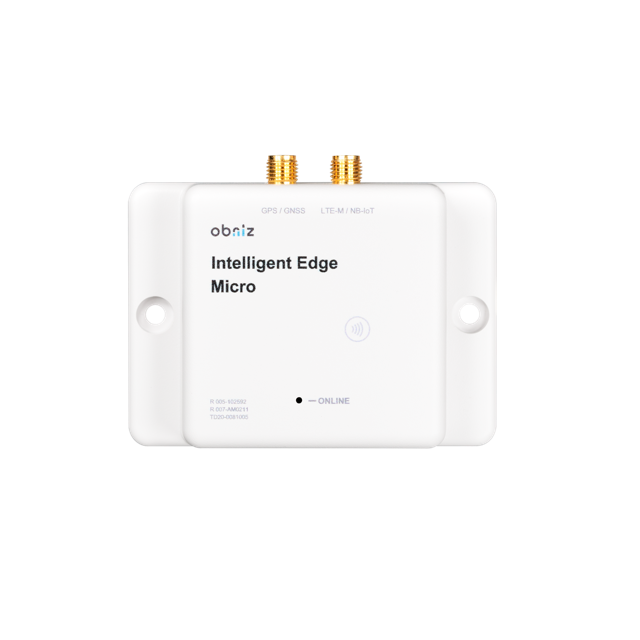

⚫︎ Front
